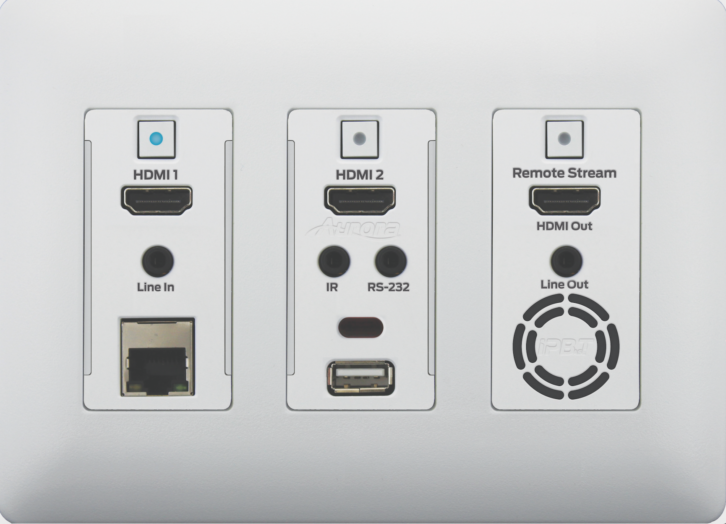

Utilizing Aurora’s IPBaseT technology, this is a 4K60 4:4:4 10G IP box or wall plate based on BlueRiver NT+ platform. The IPX-TC3 Series can uniquely be set up as either a transmitter (encoder) or a receiver (decoder) to make installation, inventory, and troubleshooting easier. It also includes an option slot to add other IP capabilities, like ExtremeUSB (USB 2.0 over IP) or Dante audio, for a more complete distributed system. Audio, video, data, and control can be sent securely to one or many IPX-TC3 transceiver units using off-the-shelf 10G fiber or Cat ethernet switches. When the IPX-TC3 is set up to be a transmitter, the two HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. The audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante-enabled device. The USB 2.0 option is also flexible, working as a KVM and/ or a high-speed data transfer (480Mbps) for memory sticks. This range brings new capabilities to SDVoE-based products including dual fiber, dual OSD, copper/fiber selectable version, 4K60 4:4:4 three- Gang wall plate, and 10G PoE, integrated server control.
