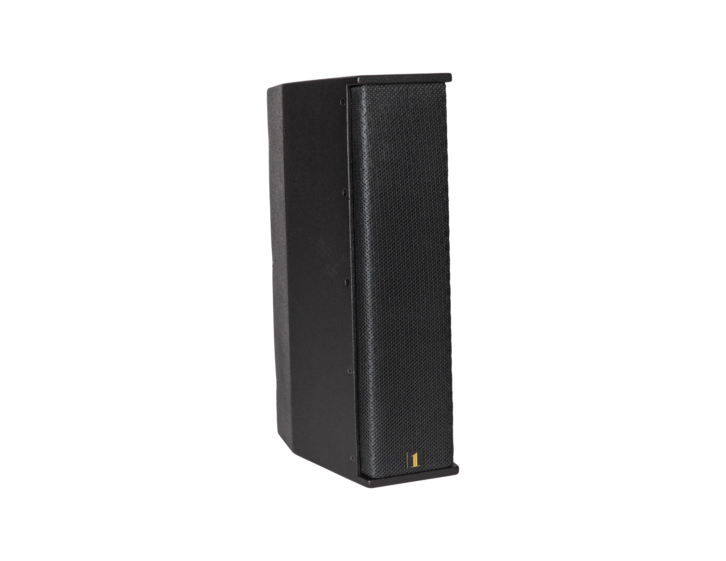

The Tower LF44 is the newest product to join 1 SOUND’s catalog, furthering the application possibilities of The Tower Series. The LF44 is a low frequency column array loudspeaker, meant to perform with the Tower LCC44 or LCC84 as a low frequency extension. The LF44 is the same construction and look as the LCC44, therefore all the LCC44 accessories are applicable to the LF44. It can be deployed in a flown array with the LCC44 and LCC84 or can be wall mounted independently. This module consists of four high-powered, low frequency drivers, and has a bandwidth of 70 Hz – 200 Hz. The LF44 uses an independent amp channel with proprietary DSP. Like all other 1 SOUND speakers, the LF44 is IP55 and saltwater resistant with custom colors available.
SPECIFICATIONS
Description: Low frequency extension column array loudspeaker
Bandwidth: 70 Hz – 200 Hz (-6 dB preset depending)
Max SPL: 125 dB SPL @ 1m w/ preset (1 speaker)
Power: 560 watts (continuous), 280 watts (AES)
Directivity: Omnidirectional
Elements: (4) 4” low frequency driver
Impedance: 8Ω
Connectors: (4) NL4, each allowing for audio inputs and linking
IP Rating: IP55 indoor/outdoor and salt water resistant
Rigging: proprietary rigging elements and fly bars -3°, 0°, +3°, +6°, +9°; (14) available M6 points
Weight: 17 lbs / 7.7 kg
Construction: Finland birch plywood (urea glue), structural stainless steel interior, polyurea, matte salt and UV resistant coating, 316 stainless steel hardware, 3D spacer mesh fabric
Accessories: LCC44 Wall Bracket, Tower Tube Mount, Tower Rigging System, Fly Bar (Long & Short), Active Speaker Stand & Tubes (37.4”, 57”, 70”)
Physical: 17.8” (452 mm) x 6.3” (160 mm) x 9.5” (240 mm)
Colors: Stocking black and white, custom colors and fabrics available
