DiGiCo’s latest V2.6 software update for its S-Series consoles brings a number of significant new features to the popular S21 and S31. These include control of the A164D Wall LCD and A168D Stage for networked audio in installations via the Dante [email protected] DMI, and support for the acclaimed DMI-KLANG, both of which were launched at this year’s ISE show in Amsterdam.
A164D Wall LCD and A168D Stage
The A164D Wall LCD, a 16-input/4-output I/O expander, and A168D Stage, a portable 16-input/8-output I/O expander, deliver all the connectivity of the original A164 Wall LCD and A168 Stage, but with the additional advantage of Dante connectivity. This not only adds the flexibility and familiarity of the Dante network protocol, but also means that consultants and integrators can take advantage of existing network infrastructure to drop I/O anywhere on the network.
With a Dante DMI [email protected] card installed in an S-Series console, access to 64 channels of I/O to or from the Dante network is provided. This allows control of both racks and can be set to either be in Full Control mode or Receive Only mode in the audio routing menu. In Full Control mode, socket properties can be changed from the console, whereas in Receive Only mode, socket property values are only received from the Dante I/O device, and not transmitted by the console.
This can be utilized when sharing inputs with another console; one can have full control of socket properties, whereas the other cannot control them, but still receives the value in order for gain tracking to be used.
The DMI-KLANG takes KLANG:fabrik’s immersive in-ear mixing core and rebuilds with today’s latest FPGA technology to deliver immersive mixes of 64 inputs for 16 musicians. This is the highest input count of any KLANG product to date, with a processing latency of just a quarter of a millisecond. The DMI-KLANG connects directly to DiGiCo consoles’ internal audio stream without any additional hardware I/O overhead.
By adding support for the DMI-KLANG to S-Series consoles, the DMI-KLANG card enables audio to be routed from the console to the card and vice versa.
RTA on EQ View
The release of V2.6 also sees the addition of an RTA (Real Time Analyzer) added to the channel EQ view of S-Series consoles, which can be toggled to be shown/hidden using the button in the top bar. The RTA meters are taken post-EQ, meaning that any adjustments in EQ are reflected in the RTA’s metering.
Separate scopes for Control Group names and Channel names

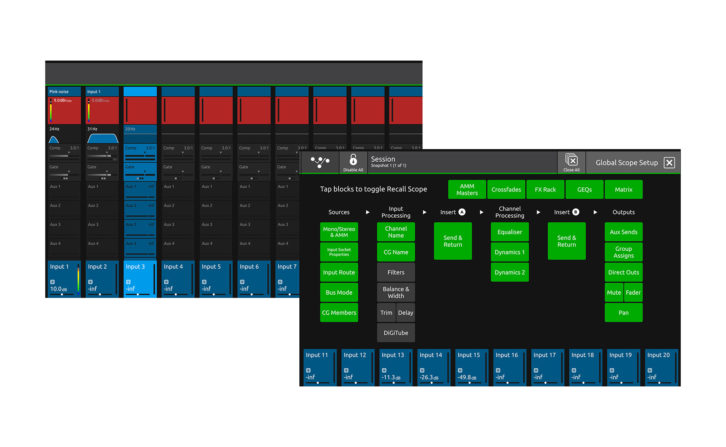

Under the global scopes view (accessible from the Snapshot list view), there is now a separate scope for Control Group names, which enables Control Group names and Channel names (for input, aux, group and matrix channels) to be selected separately. Both sets of name scopes will follow that state of the “name” scope for sessions created in older software versions, which means that functionality remains unchanged.
There is also the option to disable the double tap to flatten the EQ band, Control Group Spill set can now be recalled with presets, and the default value for Control Group Faders is now set to 0dB.
“As with everything we do, these updates are driven by requests from our customers,” says Roger Wood, DiGiCo’s head of software. “These updates are designed to provide an even better user experience and fulfill the requirements of an increasingly sophisticated market.”
