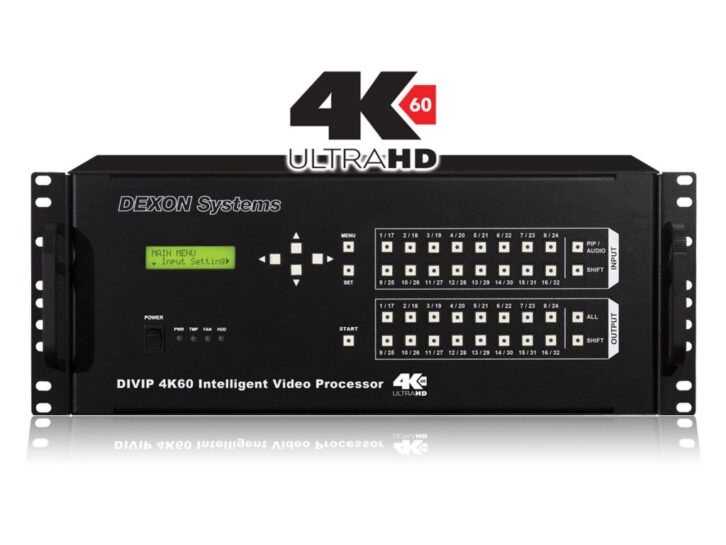

The modular all-in-one DVP500x combines video processor, intelligent presentation matrix services, routing matrix, and scaling in a single box for stable 4K60 RGB or YUV 4:4:4 visualization. Additionally, with the DVP500x-4U, Dexon introduces the new concept of “section”. Each of the sections may have assigned input signals and outputs with different access rights. The devices are built using 4U high 32×16 chassis. They process 4-32 input and 4 or 8 or 16 output signals depending on PIP number (PIP2, PIP4, and PIP8 are supported). Integrated HDCP handling, EDID, audio embedding and independent video and audio matrices are also supported. The DVP500x series also includes 7RU and 14RU models to service up to 144×72 configurations.
