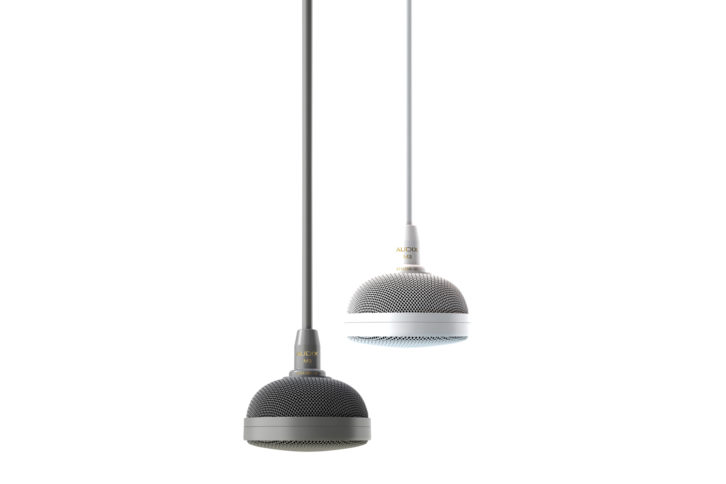

The M3 is an innovative, tri-element hanging ceiling for video conferencing, distance learning, courtroom activities, and surgical procedures. It can also be used for ambient room miking and surveillance. The M3 ceiling microphone incorporates three phase coherent hypercardioid capsules with tailored frequency response optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans, and heating /air conditioning. Low noise preamp circuitry is employed for highest possible signal to noise ratio and studio quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal. The M3 installed ceiling microphone connects to the input of a mixer or DSP console via a breakout cable (provided). The breakout cable consists of a female RJ45 connector that terminates in either three terminal block or XLR connectors. A variety of optional shielded CAT7 cable lengths (from plenum rated junction box to break out cable) are available.
