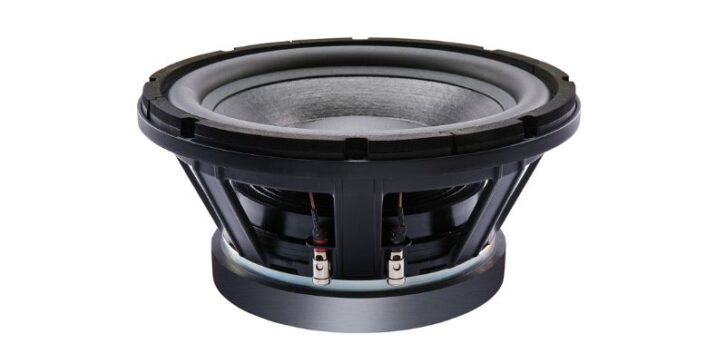

Ipswich, UK (July 26, 2023) —Celestion, one of the world’s leading suppliers of professional loudspeakers and compression drivers for sound reinforcement applications is proud to introduce the FTR12-4080DL (4-ohm) 12-inch, cast aluminium chassis, ferrite magnet low frequency driver which is specifically designed for subwoofer applications. Well-established as an 8-ohm driver, this purpose-built subwoofer is newly available in 4-ohm, making it ideal for applications that are hungry for every watt of amplifier power when delivering uncompromising bass.
The Celestion FTR12-4080DL features a 4-inch (100 mm) voice coil, providing 1400W of continuous power handling and 88dB sensitivity with an output frequency range of 20-300Hz. The half-roll elastomer surround offers improved modal distribution for reduced distortion and enables greater stability at extremes of excursion (with an Xmax of 13.6mm) for a solid, deep bass response.
The Airflow vented magnet assembly allows for dynamic heat dispersion, minimising power compression and enhancing product longevity. The driver features optimised double suspension for enhanced control and linearity and the glass loaded paper cone features a weather-resistant impregnation for extreme durability.
Developed at Celestion’s headquarters in Ipswich, England, this loudspeaker was designed using specialist FEA (Finite Element Analysis) modelling techniques, enabling the Celestion engineering team rapidly to achieve genuine increases in performance, including greater efficiency, and exceptionally low distortion.
The new FTR12-4080DL cast aluminium loudspeaker emphasizes Celestion’s continuing commitment to delivering a wide range of high-quality solutions for sound reinforcement and professional audio applications.
FTR12-4080DL Specifications
Nominal diameter 305mm / 12in
Nominal power rating 700W
Continuous power rating 1400W
Rated impedance 4Ω or 8Ω
Sensitivity 88dB
Frequency range 20-300Hz
Chassis type Cast aluminium
Magnet type Ferrite
Magnet weight 3.6kg / 126oz
Voice coil diameter 100mm / 4in
Voice coil material Round copper
Former material Aluminium
Cone material Glass loaded paper (weather-resistant)
Surround material Elastomer
Suspension Double
Gap height (Hg) 9.5mm / 0.37in
VC winding height (Hvc) 32mm / 1.26in
Xmax 13.6mm / 0.54in
